Product specification
Confirms configuration, units, version date, dimensions and installation references.
Request current fileAPEX NEON IP68UL676 APEX 1617 TV · buyer-page preview
A flexible-neon configuration currently presented for wet-environment and underwater evaluation. Final specification depends on installation conditions, control option and model-level evidence.
Review model data
01 / Model data
APEX 1617 TV model specifications.
Review the published dimensions, electrical data, cut length, protection rating and efficacy for this configuration. Values may vary by light colour and control option.
UL676 APEX 1617 SV
UL676 APEX 1617 TV
APEX 1220 TV
| Cross section | Input voltage | Power | Minimum cut | IP listing | Published efficacy |
|---|---|---|---|---|---|
| 16.2 × 17.2 mm | DC 24V | 10 W/m | 50 mm | IP68 | 82.5 lm/W |
Selection note
Confirm the current specification, selected light colour, control option and installation
accessories before ordering.
02 / Application fit

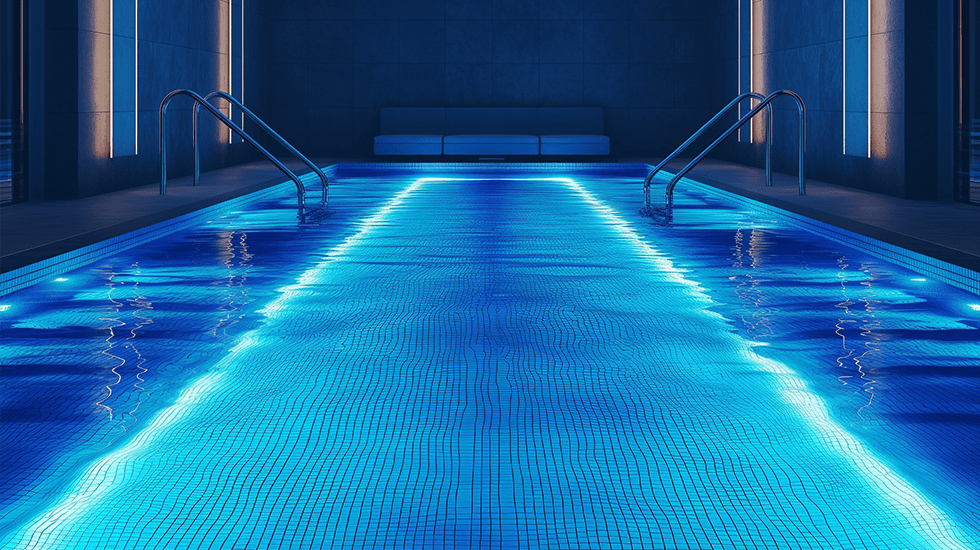

Underwater installation requirements.
Before selecting this configuration, review the water conditions, connection method, cable treatment, mounting profile, power location and maintenance access.
Light and control options
- Single-colour CCT choices from 2700K to 6500K.
- Pink, yellow, red, blue, green and orange colour options.
- RGBW and Digital RGBW configurations.
- Confirm the option-to-power, cut-unit and controller relationship before order.
Confirm before underwater specification
- Permitted water type, depth, duration and operating temperature.
- Connector, cable exit, sealing and power-supply placement.
- Bend direction, minimum radius, mounting profile and maximum run.
- Chemical, saltwater and maintenance restrictions.
- Exact configuration covered by test and certification evidence.
03 / Procurement evidence
Technical documents and compliance evidence.
Request the current model-specific documents needed for technical review, photometric planning and target-market compliance checks.
Testing report
Identifies sample configuration, method, conditions, date and supported conclusion.
Request test summaryIES photometric file
Connects photometric data to the tested power, CCT and optical configuration.
Request IES fileUL 676 documentation
Review the entity, number, validity, target market and model/structure coverage.
Confirm market coverage
04 / Buyer questions
Tell us about your installation.
Share the environment, required length, light or control option, target market and installation conditions so the appropriate configuration can be reviewed.
Does IP68 mean the product can be installed in any underwater environment?
No. An IP rating does not by itself define permitted depth, duration, water chemistry, connection method, cable treatment or maintenance conditions. Confirm the exact structure and installation instructions before specification.
What is needed before selecting RGBW or Digital RGBW?
Share the required colour behaviour, control protocol, segment or pixel requirement, run length, power location and controller environment. The recommendation depends on the confirmed configuration and compatible accessories.
What should an IES file be matched to?
Match it to the exact model, power, CCT or colour configuration, optical structure and test date. A file should not be reused across unconfirmed configurations.
